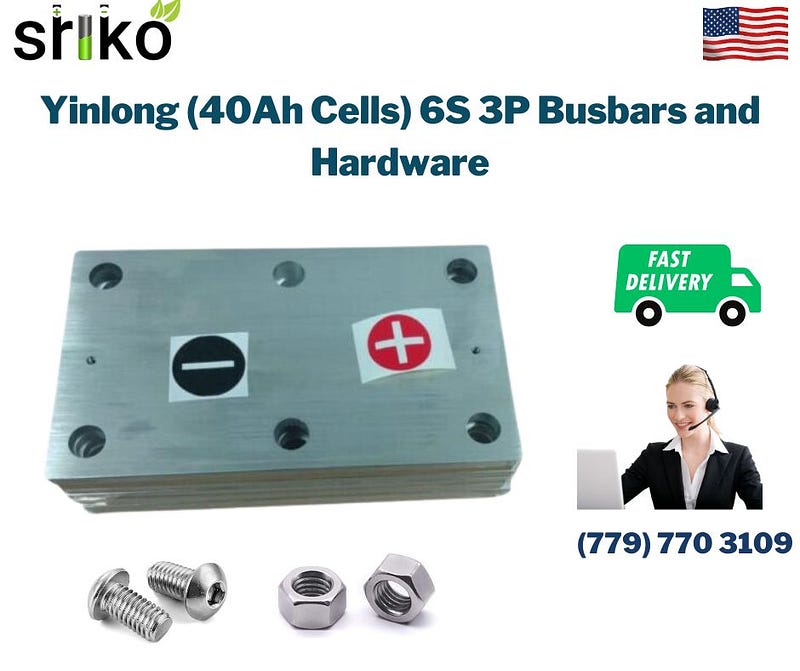

Yinlong (40Ah Cells) 6S 3P Busbars and Hardware

In a 6S 3P configuration using Yinlong 40Ah cells, the design of busbars and hardware becomes even more critical, as the system’s capacity and current handling are further increased. This configuration consists of six series-connected cells with three parallel strings, resulting in a higher total capacity and greater power output, which must be carefully managed to ensure safe and efficient operation.

Busbars in this setup need to accommodate the increased current flow. For optimal performance, copper busbars are typically used due to their excellent conductivity. The thickness and material choice of the busbars should be selected based on the expected maximum current to avoid heat buildup and ensure low resistance connections. As current increases, the risk of overheating also rises, making it vital to ensure the busbars are sized correctly to handle the load.

Additionally, hardware components such as screws, connectors, and insulating materials are crucial. Stainless steel fasteners are commonly used for their strength and corrosion resistance, ensuring a solid, secure connection that prevents mechanical failures. Proper insulation between the busbars and cells is necessary to avoid short circuits, while spacers and thermal management materials help keep the system stable and safe.

Overall, careful attention to the selection of busbars and hardware in a 6S 3P configuration ensures optimal performance, longevity, and safety for the Yinlong 40Ah battery pack.
